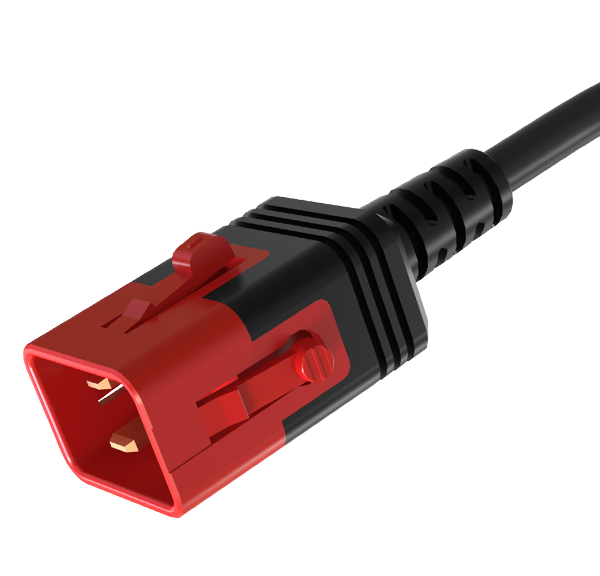

C20 IEC Lock+ Dual Locking Connector

_

Prevents Accidental Disconnection
Release locking mechanism
Release locking mechanism
c20 Lockable Connector

Technical Information

_

General Information:

  • General Information:
  • C20 Connector cannot be accidentally pulled or vibrated out of the outlet
  • A European, USA & Canada, Australian, and Japanese approved Dual Locking C20 IEC LOCK Connector that will lock into most C19 outlets.
  • Patent Pending.

Standards:

  • BS EN 60320-1: 2015
  • UL 60320-1 & C22.2 No. 60320-1
  • AS/NZS 60320-1: 2012
  • Appendix 4 Section 1, Section 6 and Appendix 10 Chapter 5

Rating:

  • 16A / 250V~ (Europe & Australia)
  • 20A / 250V~ (US/CSA)

Applications:

  • Class I Appliances

Cable Types Approved (EU/SAA)(**Not available under SAA):

  • 3G 1.00mm² H05VV-F
  • 3G 1.50mm² H05VV-F3G 1.00mm² H05RN-F
  • 3G 1.50mm² H05RN-F**
  • 3G 1.00mm² H05BB-F**
  • 3G 1.00mm² H05ZIZI-F
  • 3G 1.50mm² H05ZIZI-F

Cable Types Approved (US/CSA):

  • 16/3C & 18/3C - SVT, SVTO, SVTOO, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, SJE, SJEO, SJEOO, SJEW, SJEOW, SJEOOW 14/3C - SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, SJE, SJEO, SJEOO, SJEW, SJEOW, SJEOOW

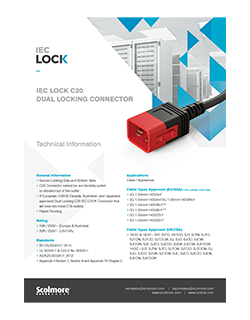

Download a PDF of the technical information here
