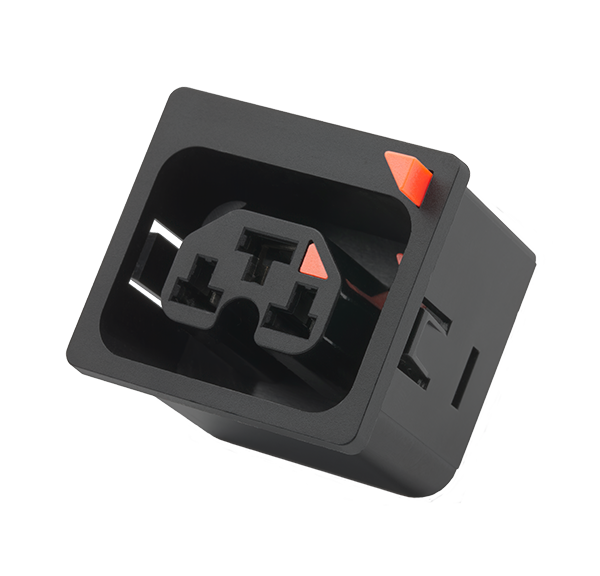

CX Panel Mount Connector

_

Nylon
Prevents Accidental Disconnection
Locking Blade
Contacts

Technical Information

_

General Information:

  • Secure Locking Side and Bottom Tabs.
  • Prevents power cords being accidentally pulled out or working loose through vibration.
  • Used on PDUs, servers and most network devices.
  • Designed to fit 1.5mm panels.
  • Will sit alongside the current PA13 and PA19 range.

Rating:

  • 10A / 125V~/250V~
  • 15A / 125V~/250V~
  • 16A / 125V~/250V~
  • 20A / 125V~/250V~

Panel Thickness:

  • 1.0mm / 1.2mm / 1.5mm

Terminal Types:

  • 50/53/55 Type (110 #/187#/250#)

Receptacle Size:

  • C13 / C15 / C19 / C21

Insulation Resistance:

  • 100m

Dielectric Strength:

  • 2KV / Min

Temperature Rating:

  • -20oC - + 70oC

Pull Force:

  • 200N

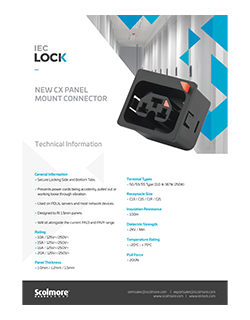

Download a PDF of the technical information here
