Unique Lockable Female C13 & C19 IEC Connectors and Outlets. The IEC Lock range can be used with any
standard
IEC inlets & Guards against accidental disconnection of computers, PDU's, servers & most Network Devices.
Release Locking Mechanism
Prevents Accidental Disconnection
Nylon LSZH

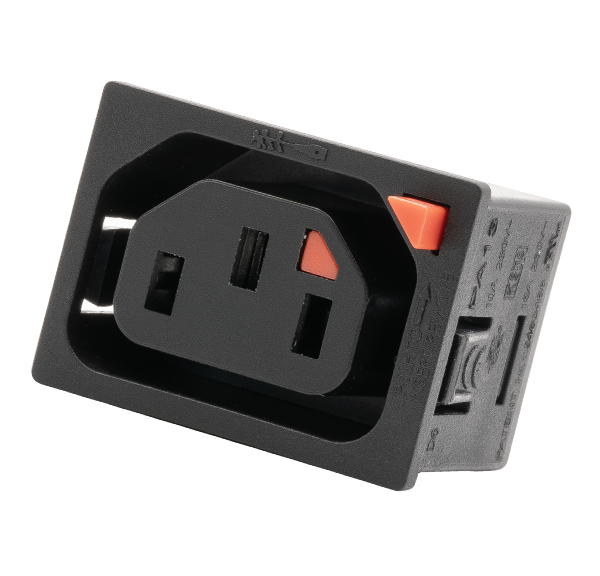

C13 Lockable Outlet
• Secure Locking Side and Bottom Tabs.
• Prevents power cords being accidentally pulled out or working loose through vibration.
• Used on PDUs, servers and most network devices.
• Designed to fit 1.5mm panels.
• Will sit alongside the current PA13 range.
• Rating: 10A European Rated, 15A UL Rated
• Insulation Resistance: 10MΩ (500VDC, 1 Min.)
• Dielectric Strength: 2KV (50Hz 1 Min) to accessible surfaces
• Materials Socket: Black Polyamide 66 (PA66)
• Black Thermoplastic UL94V-0.
• 10 A/250VAC: ENEC 05,KEMA KEUR
• 15 A/250VAC: UL
• UK Number: 2463468
• EU Number: EP2321879A
• HK Number: HK1141901
• Chinese Patent Application No: CN 102150330 A Other worldwide patents pending
• Black IEC320 Snap in 1.5mm Panel Thickness.
• Quick Connector/Solder 6.3 x 0.8mm
• IEC / EN 60320-1: 2021
• IEC / EN 60320-3
Scolmore House, Mariner, Lichfield Road Industrial Estate, Tamworth, Staffordshire B79 7UL Tel: +44 (0) 1827 63454 | Fax: +44 (0) 1827 63362 | Email: [email protected] | [email protected]
Patents: U.K. Patent No. GB2383202B
