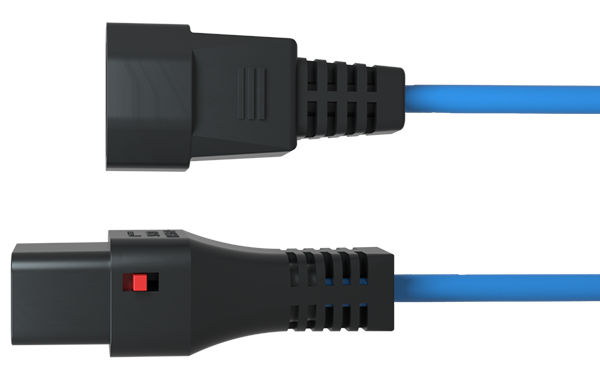

C19 Locking Connector


Release locking mechanism
Prevents accidental disconnection
Nylon LSZH
C19 lockable connector

Technical Information


Cable Assemblies

• IEC LOCK (C19) to UK Plug
• IEC LOCK (C19) to European Schuko Plug
• IEC LOCK (C19) to (C20) IEC Plug
• IEC LOCK (C19) to NEMA 5-15P (USA)
• IEC LOCK (C19) to Australian 3 Pin Plug
• IEC LOCK (C19) to Swiss and Italian Plug
• IEC LOCK (C19) to Stripped End

Test Information

Test Body: KEMA, UL, SAA, KC
Test Standard: IEC/EN 60320-1

Cable Size

3 x 1.5mm2 H05VV-F, 3 x 18AWG SVT / SJT
3 x 16AWG SVT / SJT, 3 x 14AWG SJT,
3 x 12AWG SJT
Black, Orange, Blue, Red & White

Cable Lengths

300mm up to any length. Various cables lengths and assemblies are retained as stock items with further combinations being available for special order. Call our Sales Office for more information.

Patent Information

Patents: U.K. Patent
No. GB2383202B
International Patent application No.

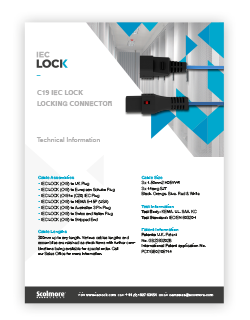

Download a PDF of the technical information here
