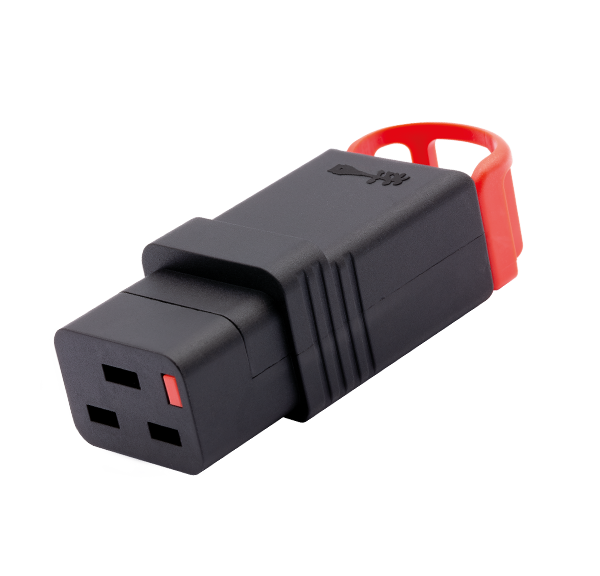

C19 IEC Lock+ Rewireable Connector


Prevents Accidental Disconnection
C19 Lockable Connector
Rear Release Locking Mechanism
Nylon LSZH

Technical Information


General Information:

  • Rewireable
  • Fits any standard C20 inlet
  • Anti-Vibrate
  • Integral plug retention feature
  • Easy pull handle
  • Slotted and Cross head housing screws
  • Appliance inlet suitable for cold conditions


  • Outer Body & Chassis: Nylon (PA66) LSZH (RAL 9004 Signal Black)
  • Cable Restraint: Nylon (PA66) (LSZH)
  • Housing Screws & Cable Restraint Screws: Steel, Nickel Plated
  • Lock Pivot Lever: Polycarbonate (LSZH)
  • Terminal Block & Sliding Terminal: Brass
  • Terminal Screws: Steel, Yellow Passivated
  • Spring: Spring Steel
  • Locking Blade: Spring Steel Zinc Plated
  • Red Handle: Polycarbonate LSZH (RAL 3020 Traffic Light Red)


  • 16A Max / 250V~ (Europe & Australia)
  • 20A Max / 250V~ (USA)

Terminal Capacity:

  • 3 Core 2.5mm² Maximum, ø2.5mm Terminal Diameter

Maximum Cable Diameter:

  • 11.3mm

Torque Value Terminal Screws:

  • 0.4Nm, Strain Relief Clamping Screws; 0.3Nm

Dielectric Strength:

  • 1.5 kV Max

Withdrawal Force:

  • >100N

Ambient Operating Temperature:

  • 25°C

Flammability Rating:

  • Equivalent to UL94V-0

Protection Class:

  • Suitable for appliances with protection Class I according to IEC EN 61140

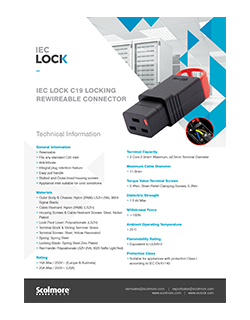

Download a PDF of the technical information here
