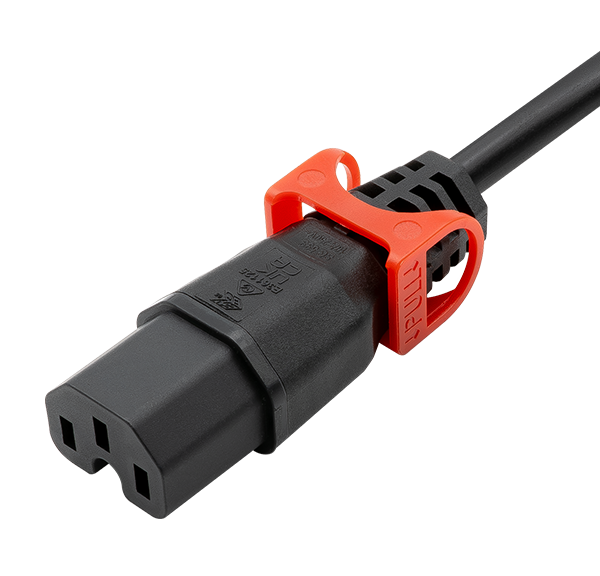

C15 IEC Lock Slimline Locking Connector

_

Prevents Accidental Disconnection
C15 Lockable Connector
Bottom release mechanism
Space saving mechanism

Technical Information

_

General Information:

  • Operates at high temperatures (Heat tolerance of up to 120 degrees celsius)
  • Slimline C15 connector with Rear Release Mechanism.
  • C15 Connector cannot be accidentally pulled or vibrated out of the outlet.
  • A European, USA & Canada, Australian, and Japanese approved Locking C15 IEC LOCK Connector that will lock into any C14/C16 inlet.

Test Information:

  • DEKRA
  • UL
  • SAA
  • PSE

Cabin Size:

  • H05RN-F 3G 0.75 / 1.00mm2
  • H05RR-F 3G 0.75 / 1.00 / 1.5mm2
  • H05BB-F 3G 0.75 / 1.00 / 1.5mm2
  • H05V2V2-F 3G 0.75 / 1.00 / 1.5mm2
  • 3 x 18AWG, 17AWG, 16AWG, 15AWG, 14AWG – SVT, SVTO, SVTOO, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SJE, SJEW, SJEO, SJEOW, SJEOO, SJEOOW, SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOO, SOOW
  • HVCTF 3G0.75 / 1.25 / 2.00mm2

Rating:

  • 10A / 250V~ (Europe & Australia)
  • 15A / 250V~ (Cul & Japan)

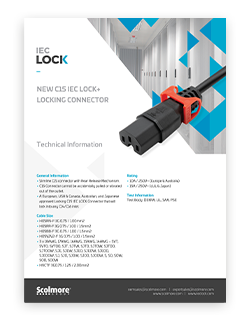

Download a PDF of the technical information here
